WRAP-EX-HEAT-FP

Cross Electrical (Nottingham) Ltd Heated Insulation Jackets for Frost Protection

Cross Electrical (Nottingham) Ltd purpose made heating jackets
constructed from silicone impregnated glass cloth with a Mineral Wool infill
incorporating Velcro fastenings and pull cord.

The inner face has sewn columns incorporating XHSR self-regulating heating cables.

BTK Bimetallic Thermostat Specification

Sealed by ultrasonics and encapsulated with silicone RTV
Max. exposure temperature up to 85°C
Minimum installation temperature -40°C
Bimetal operating temperature +15°C ± 5°C
On-Off differential 30±15K
Switching capacity 250V / 6A (normal)
Standard heater lengths: 1m, 2m, 5m, 10m, 15m - Other lengths are on request
Flexible power cord HVCTF 85°C, typ. 2.0m
3C x 1.0/1.5/2.0mm depending on heater length
Housing material polycarbonate, black
IP67 – submersible

BTK Bimetallic Thermostat Features

Uniquely IP67 Submersible

Weather resistant polycarbonate housing for outdoor use

Bimetallic thermostat control for saving electrical energy

Two LED lamp indicators - Power ON, Heater ON

All international electric cord and plug types are available

The length of heating cable and electric cord can be customized

Electric cords can be provided on both sides on request

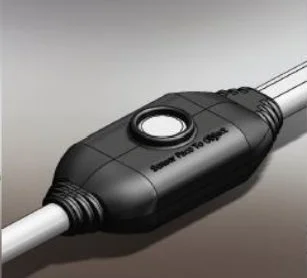

Cross Electrical (Nottingham) Ltd Heated Insulation Jackets for Frost Protection Thermostat Window

Cross Electrical (Nottingham) Ltd Frost Protection Heated Insulation Jackets Thermostat Sensor

Heated Insulation Jackets for Frost Protection

Download Brochure

Thermal Insulation Jackets Specification

Standard Specification: -

Thermal Insulation Jackets Internal Specification

Inner Fabric: Grey Silicone Coated Glass Cloth
Outer Fabric: Grey Silicone Coated Glass Cloth
Insulation: Mineral Wool (50mm thickness)
Sewing Thread: Nomex Thread (Flame Retardant and Temperature Resistant)
Fastenings: Fire Retardant Velcro Flaps, with Straps and Pullcord
Temperature Resistance: -25°C to 250°C

Thermal Insulation Jackets External Specification

External / Weather Specification: -
Inner Fabric: Double Sided Grey Silicone Coated Glass Cloth
Outer Fabric: Double Sided Grey Silicone Coated Glass Cloth
Insulation: Mineral Wool (50mm thickness)
Sewing Thread: Nomex Thread (Flame Retardant and Temperature Resistant) Fastenings: Fire Retardant Velcro Flaps, with Straps and Pullcord
Temperature Resistance: -25°C to 250°C

Cross Electrical (Nottingham) Ltd have a wide range of heating insulation jackets
for frost protection to suit a variety of frost protection applications.
This includes XHSR self-regulating heating cables.
